Accessories

Sidewall manufacturers some accessories to refine its conveyor belts for highly inclined and vertical transport systems.

FIX: lateral fixing system to fasten sidewall and cleats together granting the perfect holding of the material during the loading and avoiding any outflow of thin material.

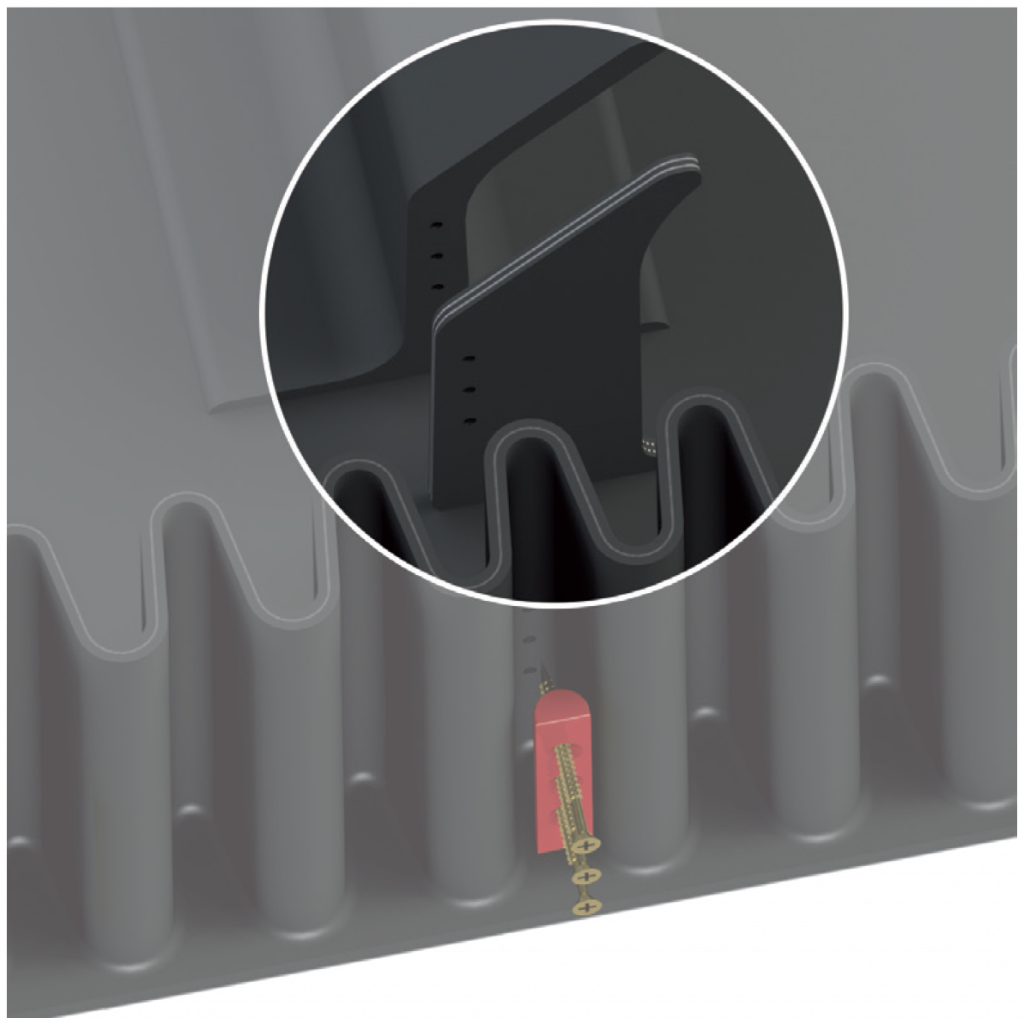

BLINKERS: lateral walls to be installed onto the cleats in order to avoid that handled materials stuck into the corrugated zones.

DRIVEROLLS: alignment system of the conveyor to facilitate the centering of the belt. The biconical shape and the lifting dynamic system grant a regular centering of the belt.

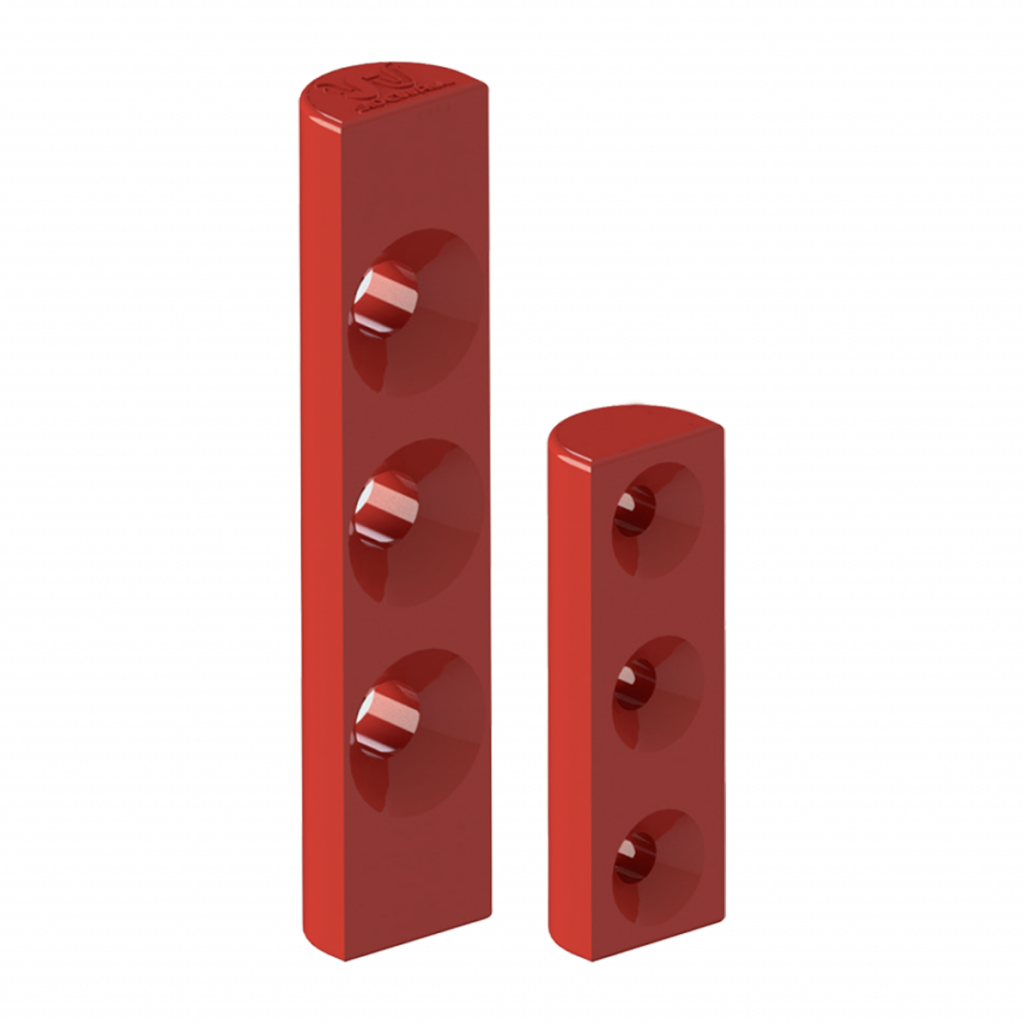

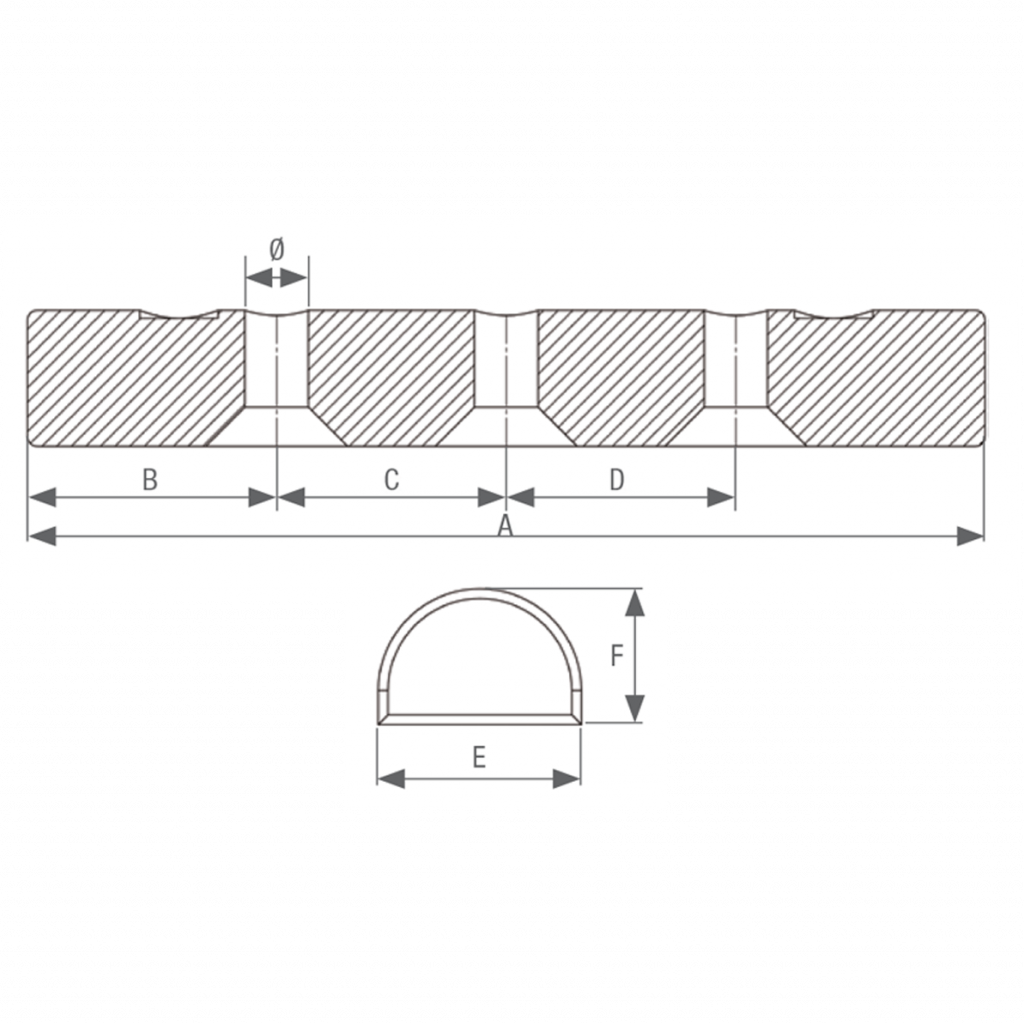

Fix
Codice A Ø
mm mm
FIX-S
55 5,5
FIX-B
98 9
Blinkers
Codice A reference cleat
mm -
BLINKERS70
70 HBL-TC70
BLINKERS110
110 HBL-TC110
BLINKERS140
140 HBL-TC140
BLINKERS180
180 HBL-TC180
BLINKERS220
220 HBL-TC220
BLINKERS280
280 HBF-TC280
Drive roll
Codice Ø A
mm mm
DRIVE ROLL-S
85 102÷123
DRIVE ROLL-B
116 163÷184
